XF200

XF200 Front Mount Deck

Starting at $18,449

Price may vary by dealer/location, does not include taxes, freight, or setup fees.

 100" Front Mount Flex Deck for John Deere 1565, 1570, and 1580

 (not compatible with cab option)



  • 100" cutting width
  • Five 21" flex decks and up to 24° of total up/down motion
  • Quick-lift deck to 78" wide for easy transport, cleaning, and storage
  • No-tool deck height adjustment from 1-1/2" to 4-3/4"
  • All Deck Wheels are Semi-Solid, to Eliminate Flat Tires
  • All decks are constructed from 7ga. 3/16” plate with 3/8” x 1/2” solid steel bar leading edges



Request Info Specs Easy Financing! No Payments for 90 Days Built in the USA Warranty Where to Buy
Attention John Deere Dealers

Replace the standard 72" fixed deck on the John Deere 1565 Series II, 1570, and 1580 traction units with Lastec's ARTICULATING XF200 100" Front Mount Flex Deck. (not compatible with cab option)

Overview

Lastec started the articulating mower industry and set the standard by which all articulating mowers are now measured. Following the contours of rolling terrain , these high quality, durable decks are designed specifically for John Deere 1565/1570/1580 traction units.


The XF200 front mount mower deck includes five independently flexing decks with up to 24° of total up/down motion for superior cut quality in even the most challenging contours and valleys. In addition, Lastec’s patented belt-driven decks require minimal maintenance.

Premium Cut Quality
Lastec flexing decks provide a premium quality of cut throughout the entire width of cut from wing to wing not found anywhere else in the industry. Lastec individual flexing decks cut areas that normally require hand trimming, provide a lower cut without scalping, mow through trenches and valleys in a single pass, and approach contours from any angle without scalping, missing grass, or damaging turf.
Lastec Articulating Mower Deck Up
Lastec Articulating Mower Deck Flat

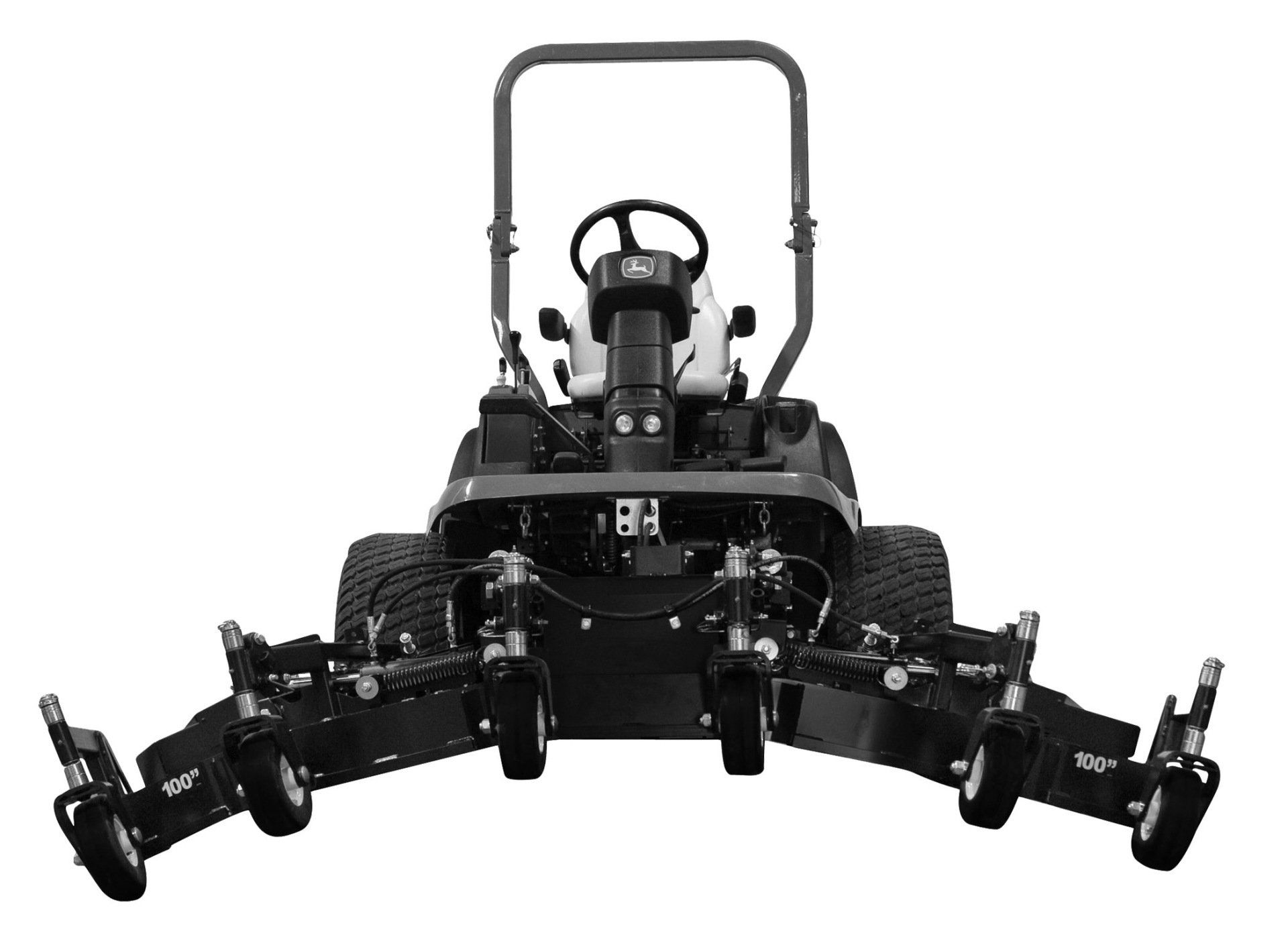

Lastec Articulating Mower Deck Down
Every Lastec mower features three, five, or seven 21” or 25” independently flexing decks that include up to 24° of total up/down motion for the premium cut quality of several small push mowers in even the most challenging contours and valleys. In addition, Lastec’s center decks include a pivot in the center capable of up to 3° of up/down motion.

Video
Specifications
Download Specs

Tractor Requirements:

1565, 1570,1580 John Deere

Transport Width:  78” (198.12 cm)

Deck Height Range: 1” to 4 3/4” (25.4 mm - 120.65 mm)

Deck Configuration:  Five 21” (533.4 mm) 5 1/2” (139.7 mm) deep, fully articulating

Warranty: 2 year parts / 1 year labor


Dimensions


Weight:  1,065lbs (483 kg)

Length 85" (2.16m)

Width (mowing) 87" (2.21m)

Width (transport) 81" (2.06m)

Cutting Deck System


Cutting Width: 100” (254 cm)

Cut Width 100” (182.88cm)

Blades (5) 21" Blades

Deck Segments 5

Height of Cut Range 1.50"-4.75"

Height Adjustment No tools Required

Acres Per Hour 7.27 (assumes 10% overlap, no stops, and average speed of 8mph)

Transport Lift Type Hydraulic

Deck Castor Wheels 9" (228.6mm) gauge Semi-Solid Tires

Transport Lift Type Hydraulic

Deck Castor Wheels 10 (No Flats)

Deck Thickness 3/16 7ga.

Deck Leading Edge 1/2"x1/4"

Blade Length 21" (53.3cm)

Articulation p/m 12 degrees

Height of Cut Change- Timing 5 min.

Height of Cut Change- Tools required None

Height of Cut Change- Person's Required 1Min.

Height of Cut1.50" (38.1 mm)

Max Height of Cut 4.75 (120.65 mm)

Weight 1,065lbs (483kg)

# of Decks 5

Number of Grass chutes 1

Discharge Capability Side, Rear, Mulch

Bearing/Spindles 5

Pulleys(Cast or Split) Cast Steel

Rows of fixed wheels 1

Hydraulic Cylinders 2

Hydraulic Connections 6

Hydraulic Manifold 0

Pulleys 12

Blades 5 CW

Number of Belts 6

Size of Belts 2

3" Back-Bend Idlers 4

1/4 Turn Belt Twists 0

Spring Loaded Idlers 4

PTO's 1

Carrier Bearings 0

Grease Points 18

Height When Raised 15" (381mm)
