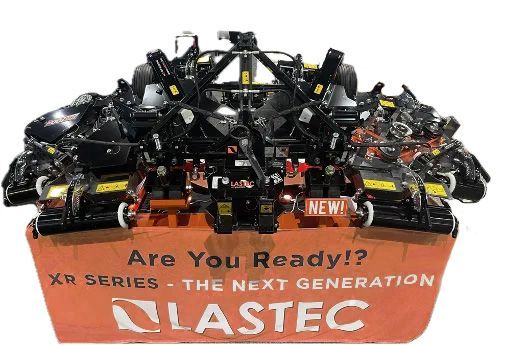

NEW XR Series II - The Next Generation
The Next Generation of Rotary Mowing!
Introducing the ALL NEW XR SERIES ARTICULATING FLEX-DECK PULL BEHIND MOWERS in both a Hybrid/Castor wheel design, and complete Roller deck designed units.
Featuring:
- No Mess, No Fuss- Easiest HOC Change System on the market
- No Belt Replacement Realignments- with a Self Tensioning Belt System
- No Daily Maintenance- Hookup and Go to work each day
- No Excessive # of Grease fittings- 50% Less than the competition
- No Expert Operator Requirements- Rollers Make it Easier to Navigate Obstacles

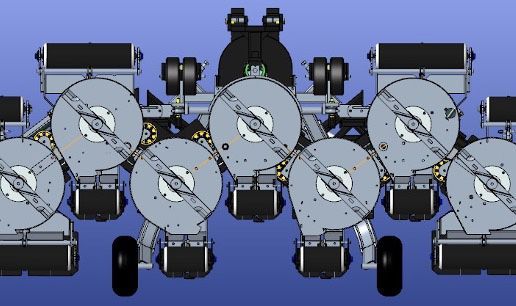

Individual 21” Cutting Decks That Move Independently To Follow The Ground
•Each, individual cutting 21” cutting deck is connected in the assembly so that it may articulate 360 Degrees independently to follow the ground better than a flat deck assembly.

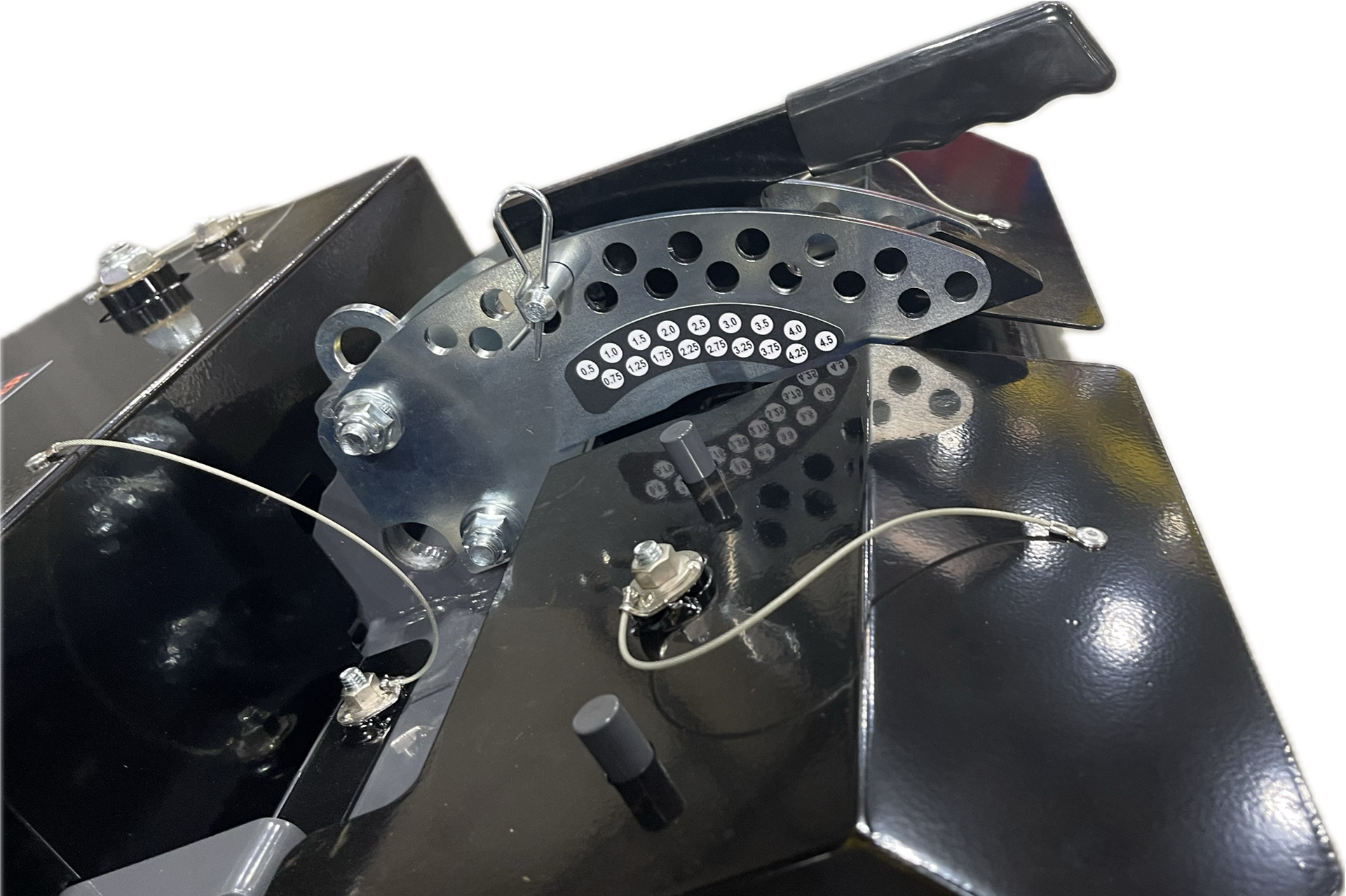

.50” to 4.50” Height Of Cut Range
• The rollers can be moved in .25” increments to change the height of cut by moving the retainer and roller mount to the hole for the desired cut height
Rollers On Cutting Decks
•Two outer decks on the XR700R have rollers on the front and back of the cutting decks. The three inner decks have rollers on the back of the decks and are also controlled by dual caster wheels in front of them.
• On the XR500R, the outer deck on each side will still have rollers on the front and back of the decks

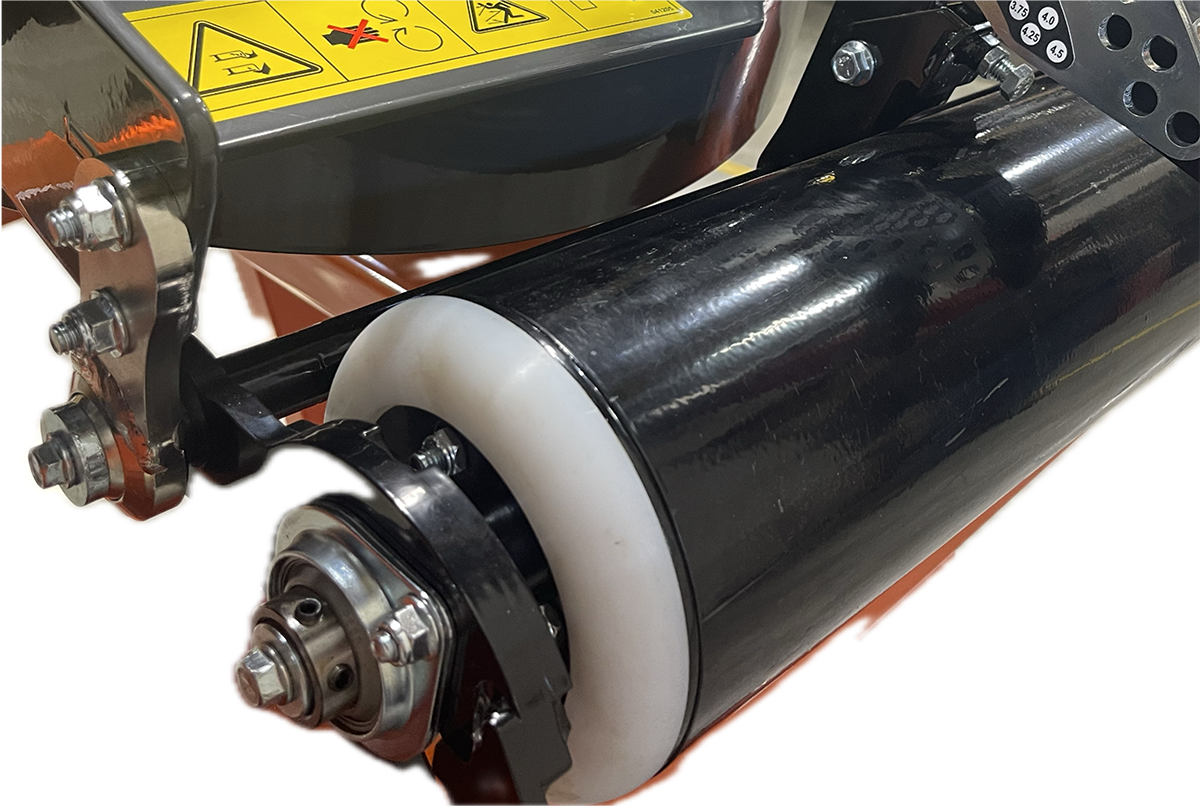

Rollers With Rounded Edges
•The rollers have rounded edges to protect the cutting grounds from damage while mowing and turning

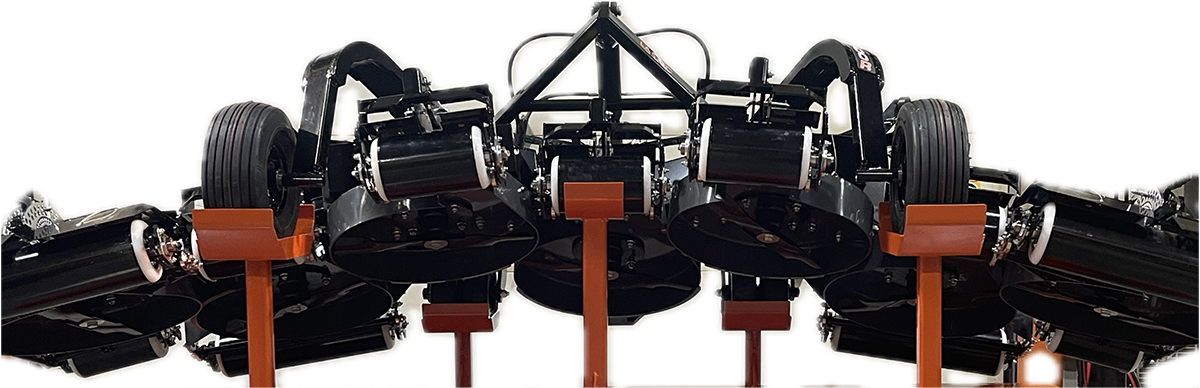

Dimensions & Weight
The operating weight of this unit is extremely lower than our competition, which means lower compaction rate for turf.
Operating Dimensions
- 134" side to side X 68" front to back (not including pull option pcs)
- Transport/folded position
- 121" side to side X 68" front to back (not including pull option pcs) X 46-1/2" tall
Weight
- 2,200 lbs. (mower ONLY. Does not including crate, and other parts that are shipped)
New Models Available
XR500H
$22,899
- 96" Rear Mount Hybrid Castor/Roller Deck
- CAT.1
- 3-Point Hitch
- Hydraulic Lift
XR500HT
$24,899
- 96" Rear Mount Hybrid Castor/Roller Deck
- CAT.1
- Draw-Bar Hitch
- Hydraulic Lift
XR700H
$26,899
- 132" Rear Mount Hybrid Castor/Roller Deck
- CAT.1
- 3-Point Hitch
- Hydraulic Lift
XR700HT
$28,899
- 132" Rear Mount Hybrid Castor/Roller Deck
- CAT.1
- Draw-Bar Hitch
- Hydraulic Lift
XR500R
$25,899
- 96" Rear Mount Complete Roller Deck
- CAT.1
- 3-Point Hitch
- Hydraulic Lift
XR500RT
$27,899
- 96" Rear Mount Complete Roller Deck
- CAT.1
- Draw-Bar Hitch
- Hydraulic Lift
XR700R
$33,899
- 132" Complete Roller Deck
- CAT.1
- 3-Point Hitch
- Hydraulic Lift
XR700RT
$35,899
- 132" Complete Roller Deck
- CAT.1
- Draw-Bar Hitch
- Hydraulic Lift
